Before recycling, the used lithium batteries must be discharged. After soaking the used batteries in salt water for 2-3 days, they can be dried or dried naturally. Ensure that the lithium batteries are fully discharged to prevent safety hazards such as fire or explosion.

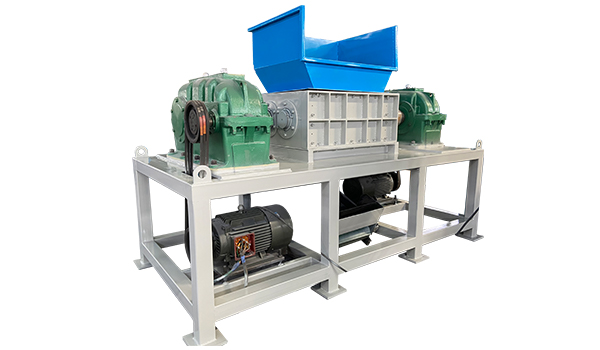

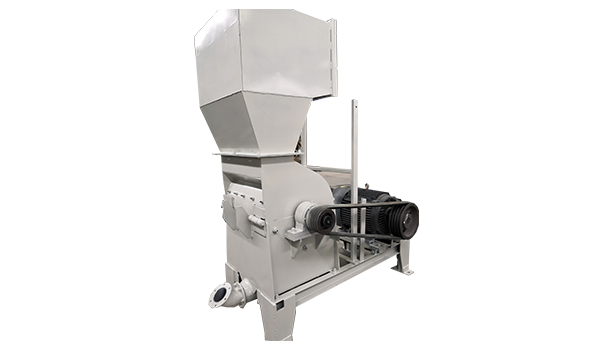

The discharged lithium batteries enter the shredder through a conveyor belt for pre-processing, and then enter the hammer crusher for fine processing.

The crushed raw materials enter the screening section: the black powder and diaphragm are screened out respectively through the drum screen and the linear screen.

Secondary crushing and screening can further filter out a small amount of black powder.

The air separator separates the materials according to their specific gravity to obtain the metal copper and aluminum.

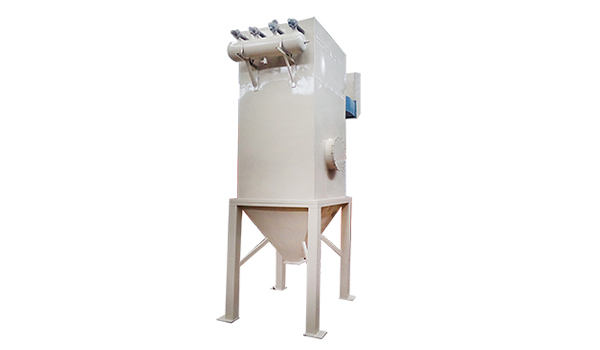

The pulse dust removal equipment automatically removes dust throughout the process.
