Batch Pyrolysis Plant‹

‹

Director 引领者

Technological innovation leads development, DOING Youpin empowers the industry

Semi-continuous refinery equipment

Semi-continuous refinery equipment: intermittent + full continuous "combination", economical + efficient "combination"
Processing capacity: 15T/D, 2020T/D, etc.

Fully continuous refinery equipment

Fully continuous refinery equipment: continuous closed feeding and slag discharge, real 24h continuous operation, higher safety and environmental protection factor
Processing capacity: 15T/D, 20T/D, 30T/D, 50T/D, etc.

Small Unit Frame Type Oil Refining Equipment

Small unit frame-type oil refining equipment: frame-type structure design, compact structure, small footprint, simple operation and convenient maintenance.
Processing capacity: 100KG/D, 500KG/D, 1T/D, etc.

Batch refinery equipment

Batch refining equipment: one-stop design, automatic feeding, slag discharge after cooling, to achieve intermittent production operation
Processing capacity: 1T/D, 2/D, 5T/D, 10T/D, 12T/D, 15T/D, etc.

Raw materials and products

Product selling point

Reaction Kettle:Adopt 16mm thick boiler and arc-shaped pressure-resistant head design, which can withstand high temperature and high pressure, one-piece pressing, not easy to crack;

Vertical condenser:The three-stage condensing system adopts a tube-and-tube condenser to ensure that the oil and gas are fully cooled, and the oil-flowing inside the tube and the water-flowing design outside the tube ensure zero contact between oil and water;< /p>

Water seal, negative pressure vacuum device:Safety device to prevent backflow of tail gas; provide negative pressure to drain oil and gas, with higher safety factor;

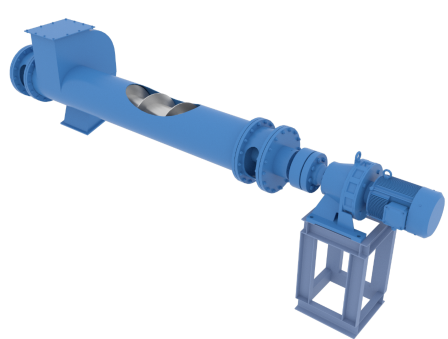

Carbon black air transportation system:Uses fully enclosed technology, continuous fully enclosed feeding slag discharge + negative pressure dust collection device, to ensure that solid products are transported in airtight equipment and pipelines without dust Disclosure;

Flue gas and exhaust gas purification system:Proprietary combined flue gas and exhaust gas purification system ensures that all emissions comply with EU EEA and US EPA standards, clean, environmentally friendly and pollution-free;

Video

Seiko quality

1
Condensation system: ① multi-stage condenser design, buffer condensing tank + vertical and horizontal condenser + condensing tower, improve condensation efficiency and oil yield; Zero contact between water and oil.
2
Flue gas and tail gas purification system: The proprietary combined flue gas and tail gas purification system ensures that all emissions comply with EU EEA and US EPA standards, clean, environmentally friendly and pollution-free; the main body of the desulfurization and dust removal tower is made of glass steel, which is resistant to high temperature and acid and alkali corrosion , anti-aging, light weight and high strength, long service life
3
Feed and slag discharge system: ①Closed feed and slag discharge to ensure that solid products are transported in closed equipment and pipelines, without dust leakage, and have a higher safety and environmental protection factor; ②The design of two-way slag discharge port ensures the efficiency of slag discharge ;
4
Reactor: ①Select 16mm thick boiler-specific steel plate (Anyang Iron and Steel Q245R/345R material), anti-corrosion and oxidation, and durable equipment; ②Standard curved anti-pressure head design, which can withstand high temperature and high pressure, one-piece pressing, not easy to crack.
